Traceability for indentation measurements in Brinell-Vickers-Knoop hardness

Short Name: TracInd BVK-H, Project Number: 22RPT01

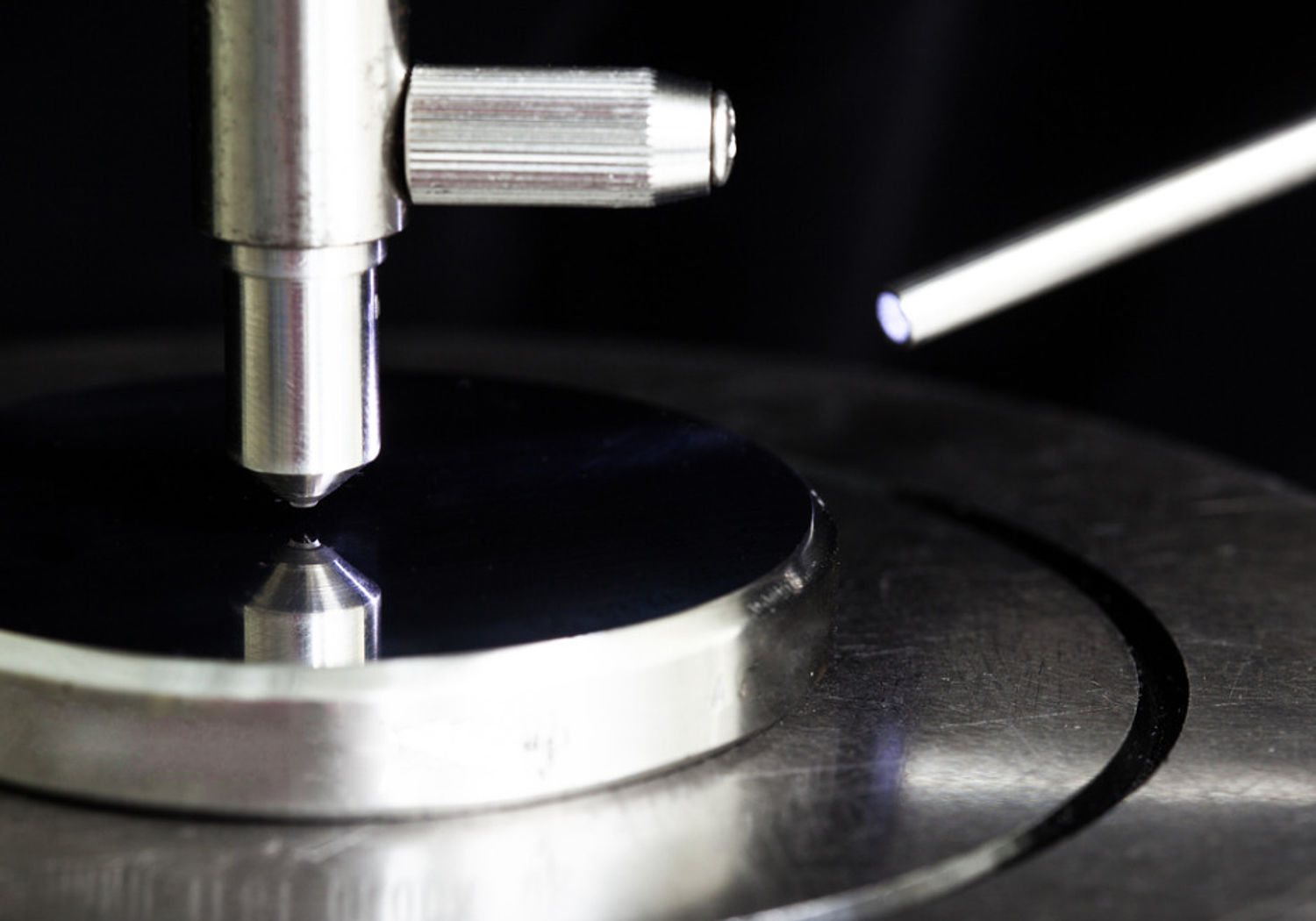

Image showing a Close-up of an indentation instrument
Close-up of an indentation instrument
Coordinator

Developing traceable automated tests for material hardness


Hardness is a property of all materials and can have a profound impact on the suitability and safety of a material’s use.

Hardness is tested by applying a known load to a sample through an instrument, often tipped with a diamond, to make a permanent indentation. The indentation is then measured across its diameter and a conversion factor is applied to determine the material’s hardness number. Different types of hardness test are suitable for different applications – Brinell, Vickers and Knoop (BVK), which each use a differently shaped indenter, are three of the most commonly used.

However, indentation measurements are mostly still done manually and so accuracy is heavily influenced by the operator. They are also impacted by a lack of standards defining the borders of indentations, a lack of suitable references and poor traceability due to the number of different devices used for testing. A decrease in accuracy has been identified in particular when moving between National Measurement Institutes (NMIs) and testing laboratories.



The project will address these issues by developing a methodology to define indentation borders and producing long-term stable reference indentations for each BVK test. It will also create a methodology for ensuring traceability, alongside design recommendations for manufacturers to implement in future machines. Finally, it will develop software for the automation of indentation measurements.



This work will improve accuracy for BVK tests by removing ambiguity in measurements and reducing reliance on human operators. This will, in turn, improve safety and reduce costs associated with replacing unsuitable materials.



Other Participants
EASYDUR SRL (Italy)
Javna ustanova Univerzitet u Zenici Universitas Studiorum Zenicaensis (Bosnia and Herzegovina)
LTF S.p.A (Italy)
Materialprüfungsamt Nordrhein-Westfalen (Germany)
Politecnico di Torino (Italy)
Zavod za gradbeništvo Slovenije / Slovenian National Building and Civil Engineering Institute (Slovenia)

Information

Programme
Metrology Partnership
Field
Capacity Building
Call
2022
Duration
2023-2026
Total EU contribution (in M €)
0,578
